Time to wax poetic about one of my favorite topics: construction equipment. Not only is the history of these machines intimately entwined with human progress, but learning how the first guy came up with the first forklift, grader, excavator, tiller, or what have you is fascinating. The grader was invented in 1883, when James Porteous was working in the irrigated San Joaquin Valley. His horse-drawn “Fresno Scraper” made short work of creating ditches and moving soil. Later, the Russell Grader Manufacturing Company made a self-propelled grader by adding a blade to a tractor. Caterpillar saw the possibilities, bought the Russell Grader company, and promptly produced an integrated, specialized grader that it called the No. 9 Auto Patrol. Weirdly, the No. 7 followed the No. 9, but then we got back on track (ha ha) as the No. 10 came along. Today, we consider this cosmetically dapper 1937 Caterpillar No. 10 Auto Patrol grader for sale as a non-running project on Machinery Trader, priced at $9900. The new owner will need to charter appropriate transport from Cheshire, Connecticut.

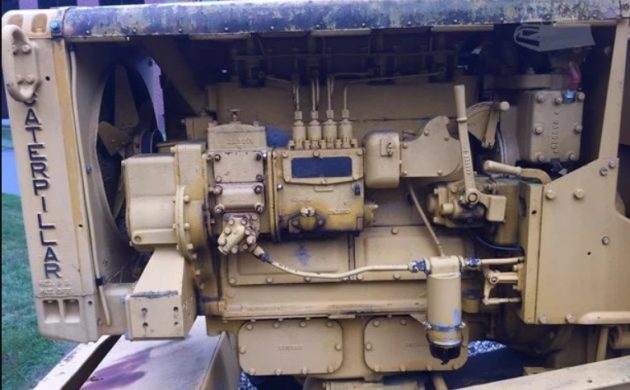

This Cat “ran when parked” but is currently functioning only as a lawn ornament. It’s equipped with Cat’s early D4400 four-cylinder diesel, good for about 43 hp at the drawbar and a massive 421 lb-ft of torque. Parts are no longer easy to find for these engines, which is probably why it isn’t running. Now back to the odd man out – that No. 7 Auto Patrol. Cat made the 7 after the 9 to entice buyers with a “base” model: whereas the 9 was equipped with a five-handle power control box for left lift/right lift/sideshift/circle/scarifier, the 7 had a three-handle box, missing the circle and scarifier. To angle the No. 7’s blade, the operator stabbed the blade into the ground and drove around it. By the time the full-featured No. 10 arrived, nearly every component had been improved: the new model had a power shaft, better circle support for pivoting the blade, more comfortable driver’s quarters, and a more robust frame.

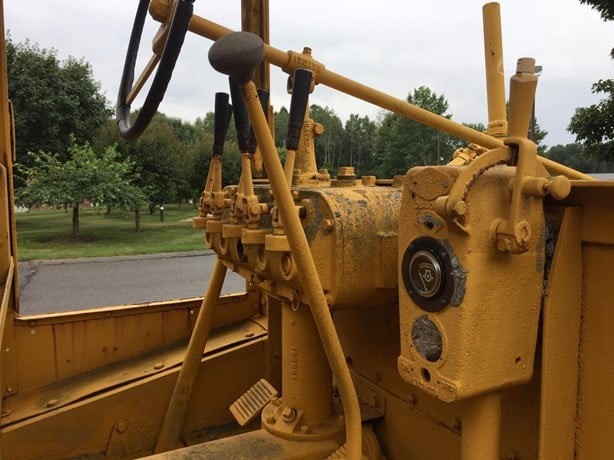

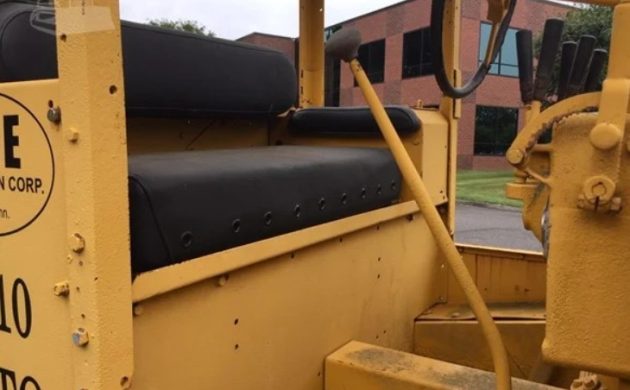

No, the driver’s accommodations are not plush, but the canopy was standard, offering a modicum of protection from rain, and the seat padding had improved. The power box, seen here, is accompanied by a single gauge; looks like one is missing. This Cat weighs over 13,000 lbs.

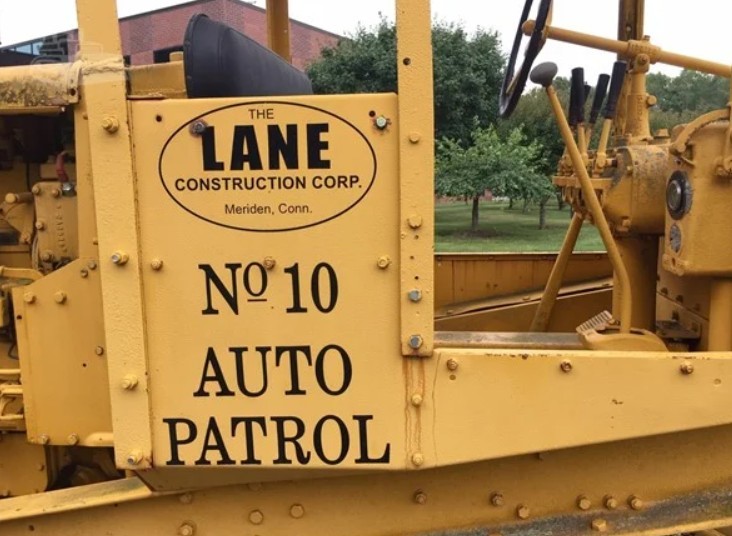

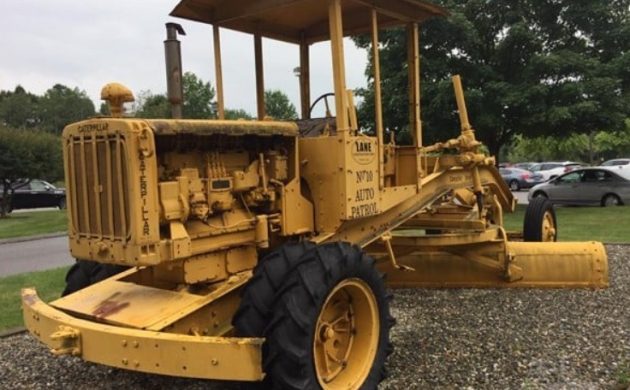

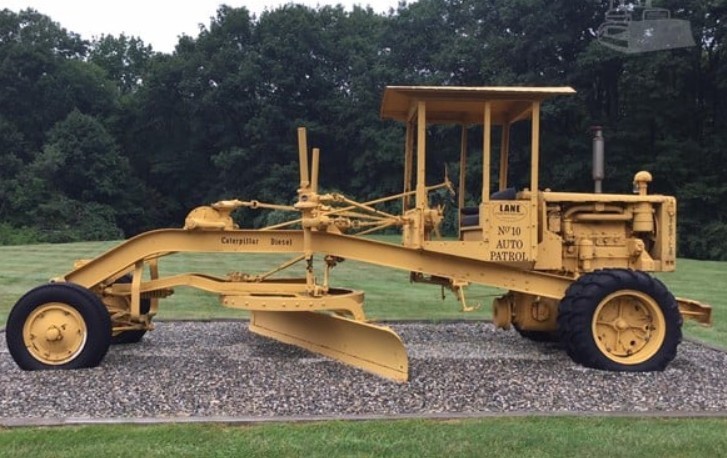

Pneumatic tires were still a bit rare on construction equipment in 1937 – tracks were much more common. A flip-down step on both sides of the cab aids ingress; the No. 10 was introduced in 1933, and its canopy supports were curved like a bird cage – these are straight. The mushroom air cleaner assembly is still present on the grader’s snout. While No. 10 Auto Patrols don’t sell every day of the week, my hunch is this seller might need to discount this handsome grader before it finds a new home. What do you think?
