Barn Fresh 1955 Jaguar XK140 SE!

Having spent the majority of its life in Arizona, this 1955 Jaguar XK140 SE represents a solid and complete restoration project. In its day, this was a pretty potent British sports car, and there appears to be no reason why it couldn’t be returned to that state once again. Located in North Canton, Ohio, you will find the Jaguar listed for sale here on Craigslist. The owner is asking $45,000 for this project car.

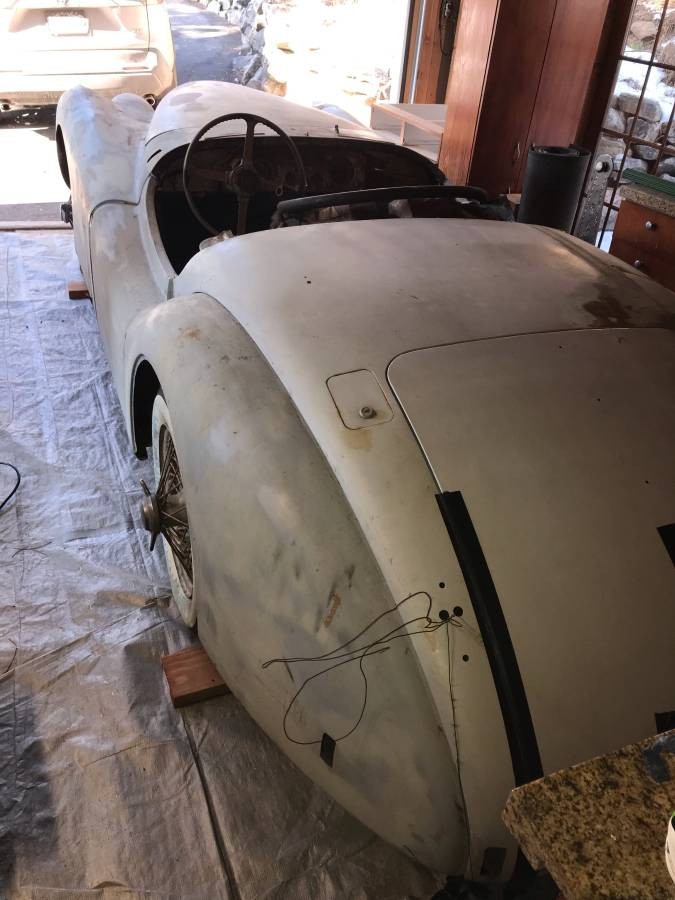

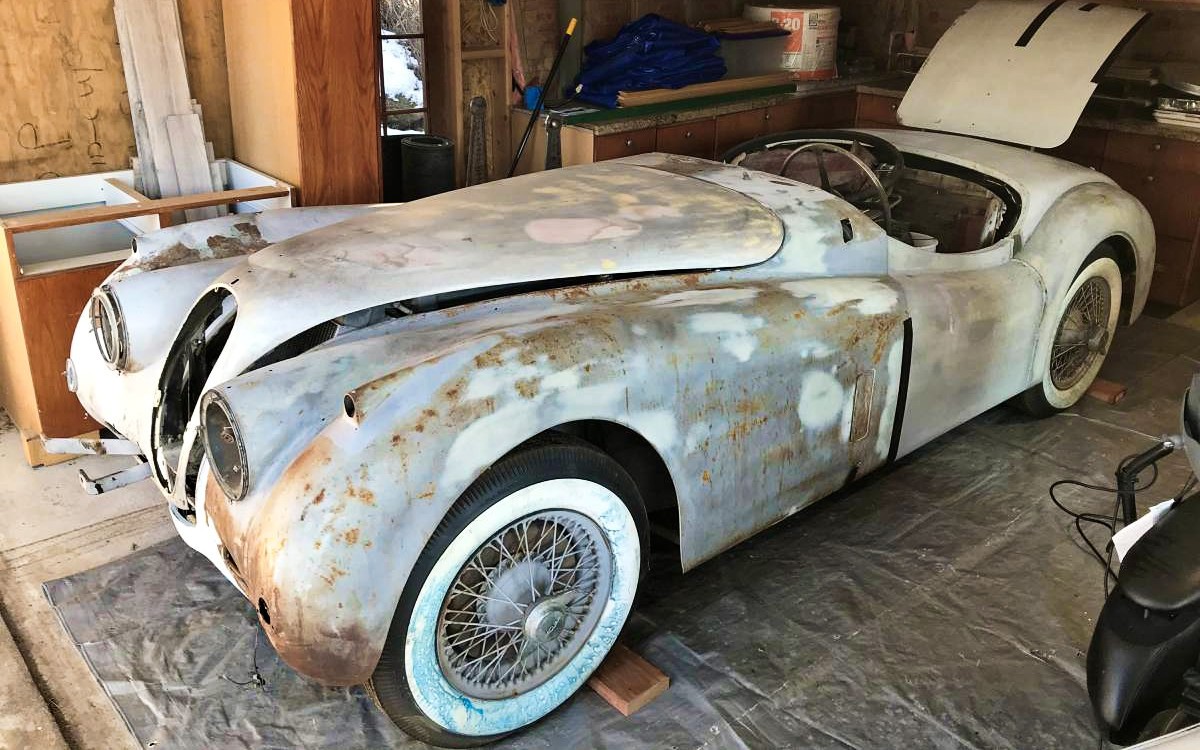

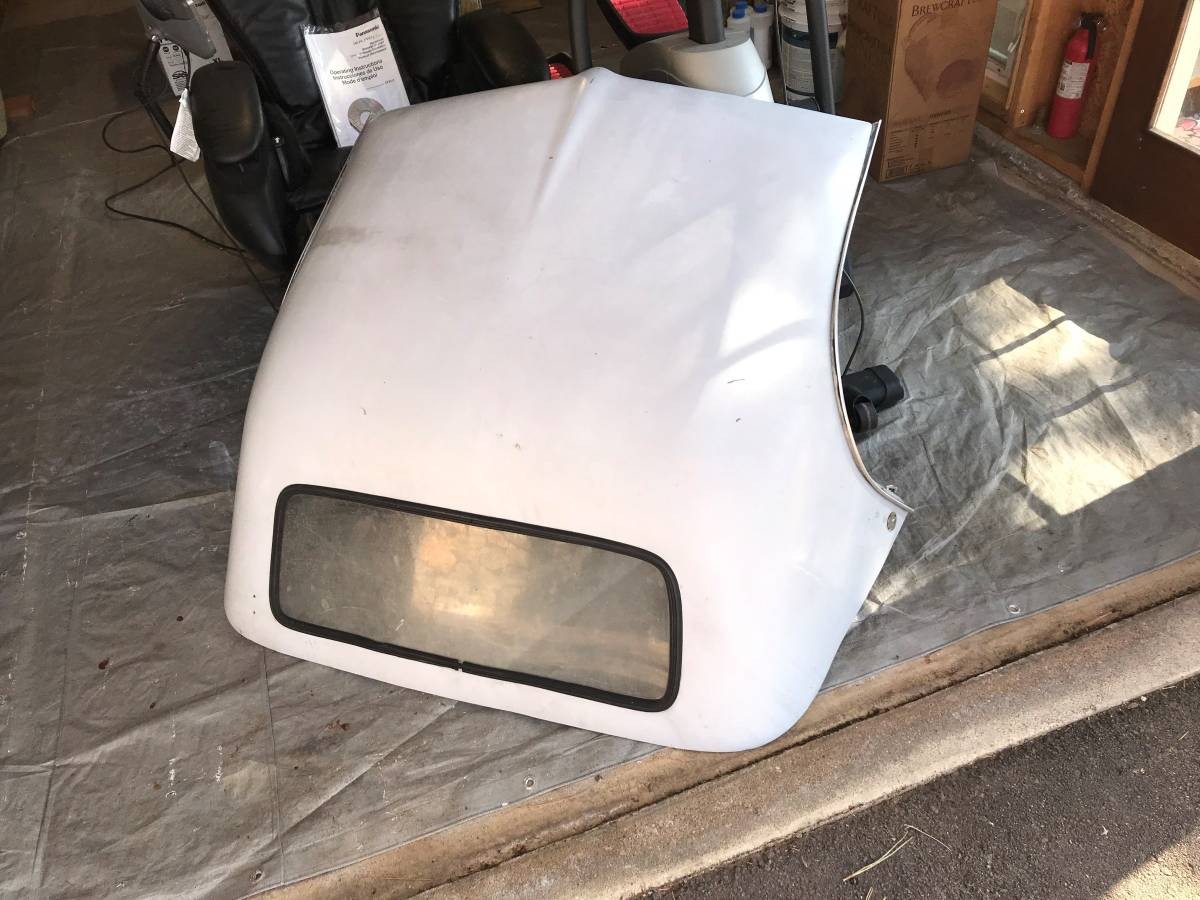

The original owner of the Jaguar dismantled it with a view to undertaking a full restoration, but this never eventuated. The current owner strongly reassures us that the car is complete and that every part that has been removed by the original owner is actually present. He says that the car is as solid as a rock, with the only rust being a small area in one corner of the battery tray that is showing some rot. This is a very common fault and is quite easy to fix. The frame is said to be clean, and while there is no evidence of any real accident damage, the owner says that there is some evidence of some very minor dent repairs. He believes that judging by the techniques that have been employed, these repairs were probably performed at some point in the 1950s or 1960s. The rest of the panels look essentially straight, and whipping them into shape for a fresh coat of paint should be an easy task. One interesting inclusion with the Jag is an aftermarket fiberglass hardtop. This appears to be in good condition, although the rear window does look like it might be a bit cloudy.

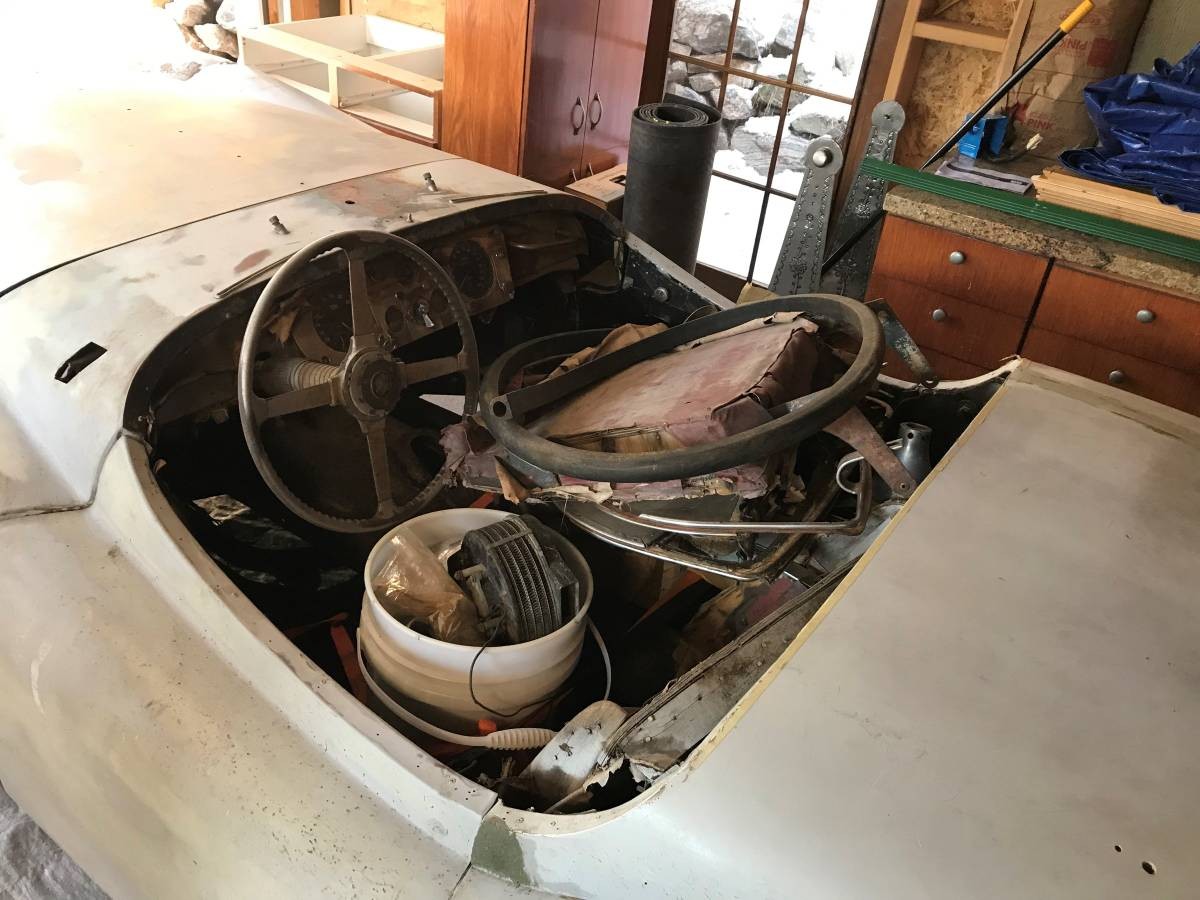

It isn’t at all surprising that the interior is in need of a complete restoration. I would say that the original leather and leatherette was finished in red, and would have looked pretty classy. A retrim is not going to be a cheap exercise, but given the relative rarity of the car, it should be well worth the effort. A full trim kit will cost in the vicinity of $7,000, but that will include everything that you would need to have the interior looking like new, with the exception of the wheel and gauges. A replacement wheel will add around $550 to the restoration cost, and while the original gauges are present, the owner stated that they will require restoration.

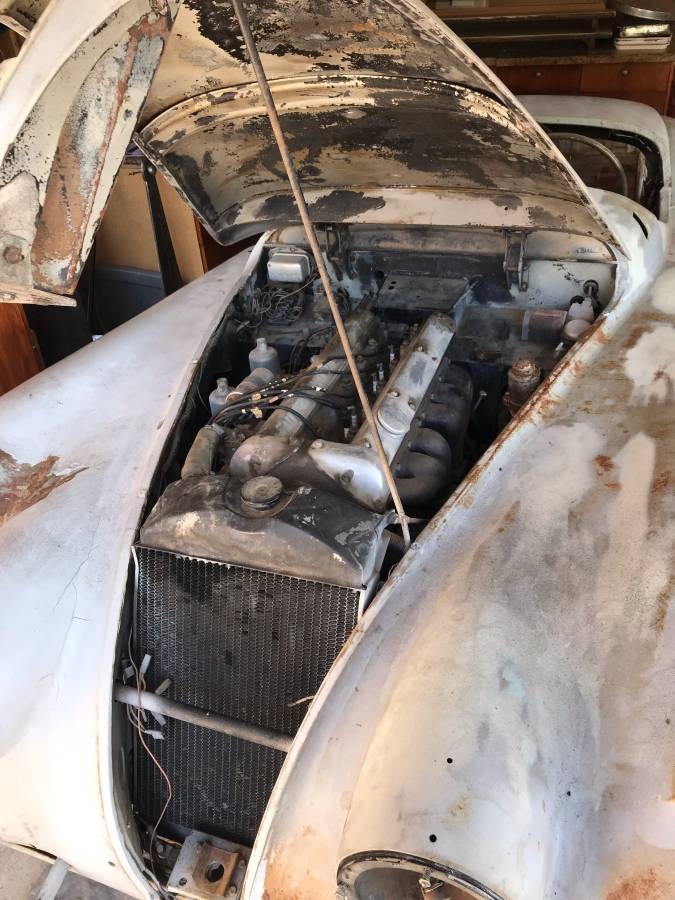

The Jag is a numbers-matching car, and while it currently doesn’t run, the owner has checked, and the engine does turn freely. This is a 3,442cc DOHC straight-six engine, and with the inclusion of the original C-Type cylinder head, it originally pumped out 210hp. Unique to the SE version was a dual exhaust, 2″ sand-cast carburetors, and heavier torsion bars for the suspension. The power from that beautiful engine found its way to the rear wheels via a 4-speed manual transmission with overdrive. All of these components remain present, but how healthy they are is the great unknown. Given the fact that the car appears to have been sitting for quite some time, I suspect that there will be some quite intensive inspection work in the future, and possibly some refurbishing as well.

This 1955 Jaguar XK140 SE represents a restoration project that is not the biggest that we’ve ever seen, but it is going to be a fairly intense one nonetheless. The asking price doesn’t represent a cheap entry point for someone hunting for a project car, but the reward at the end of that process is a car that could potentially be capable of achieving a healthy six-figure value if the restoration is completed to a high standard. Even if you ignore potential values, the end result will be one truly beautiful car.

Comments

  1. Avatar photo Andy

    Boy, if I just had the money, space, time, and ability I’d be all over this beauty!

    Seriously, this is a true classic and I hope it finds the best new home.

    Like 2
  2. Avatar photo C Carl

    The Harley guys used to call something like this a basket case. That’s not a bad thing, it just means your new car comes home in several boxes.

    This is Pebble Beach stuff, way out of my league but I like it. Beautiful Car.

    Like 2
  3. Avatar photo Alan Brase

    I like this car a lot. If I bought it, I would fix the body damage with first class metal finishing.And BLEND in new paint. Would this have been LACQUER? I think so. It solvent melts with the old.
    Clean stuff off, get it running.
    A big part of the value here is that it was assembled in 1955 in Coventry, by workers that knew how to do them, not by some novice later.
    I have no need to become that novice. I would NOT take it apart and restore it.
    Just fix it. Monitor the oil and grease. Repair what needs it. Yes, I’d have to restore the dash. (I’m not a masochist!)

    Like 1
  4. Avatar photo bobhess Member

    Original paint was single stage enamel over a light primer. Don’t remember what the primer composition was but it was hard as a rock after a few years on the car. The Brits were using some pretty hefty paint in those days.

    Like 1
  5. Avatar photo Bob in Bexley Member

    Drophead before Roadster all day long. That hardtop is the price of the car to the right buyer.

    Like 0
  6. Avatar photo Matt

    Just a friendly suggestion, don’t price out the different stages of the restorations that these cars need. Just describe them.

    Like 1
  7. Avatar photo Sam Dibitonto

    I have an aftermarket hardtop on my 140 but the rear window is larger than the one shown..
    Does anyone know who made these???
    I know of 3 different rear windows but I don’t know if they were from the same manufacturer; >

    Like 1
  8. Avatar photo JohnfromSC

    If you are going to buy this with the intent to restore it youself, understand that the only ones that reach $100K+ are restored to an extremely high level of correctness. And doing do isn’t cheap. A single correct hose clamp will set you back $15. If you are serious and are not a 140 expert, find a JCNA XK140 judge to evaluate this car as is, and if you buy, join JCNA and seek knowledge during every single step of restiration. This will save you from making costly errors. Oh, and restoring to driver level will cost you about 20% less and return a car worth 50% less than a correct full restoration. I’m doubtful at this price that you can do this one and not be underwater. JMHO.

    Like 0
  9. Avatar photo Klfulop

    The carbs currently fitted to this car do not appear to be sand cast SUs.

    Like 1
  10. Avatar photo Jaker76

    Those are not sand cast SU’s! Link below to what sand cast look like
    https://thumbsnap.com/myS6GdJu

    https://xks.com/i-6917522-su-h8-sand-cast-carburetor-conversion-kit-suh-8.html

    Like 0
  11. Avatar photo Art Jacobs

    I love these old Jags, 120, 140, and 150. I guess you could add the E type, to the list, but that’s a different style. Probably the best way to obtain one of these beauties, is to build a time machine, go back to the 1950s, and buy one. Art

    Like 0
